Description

Anycubic Photon Mono 4: Anycubic Photon Mono 4

Anycubic Photon Mono M5: Anycubic Mono M5

Anycubic Photon Mono M5s: Anycubic Mono M5s

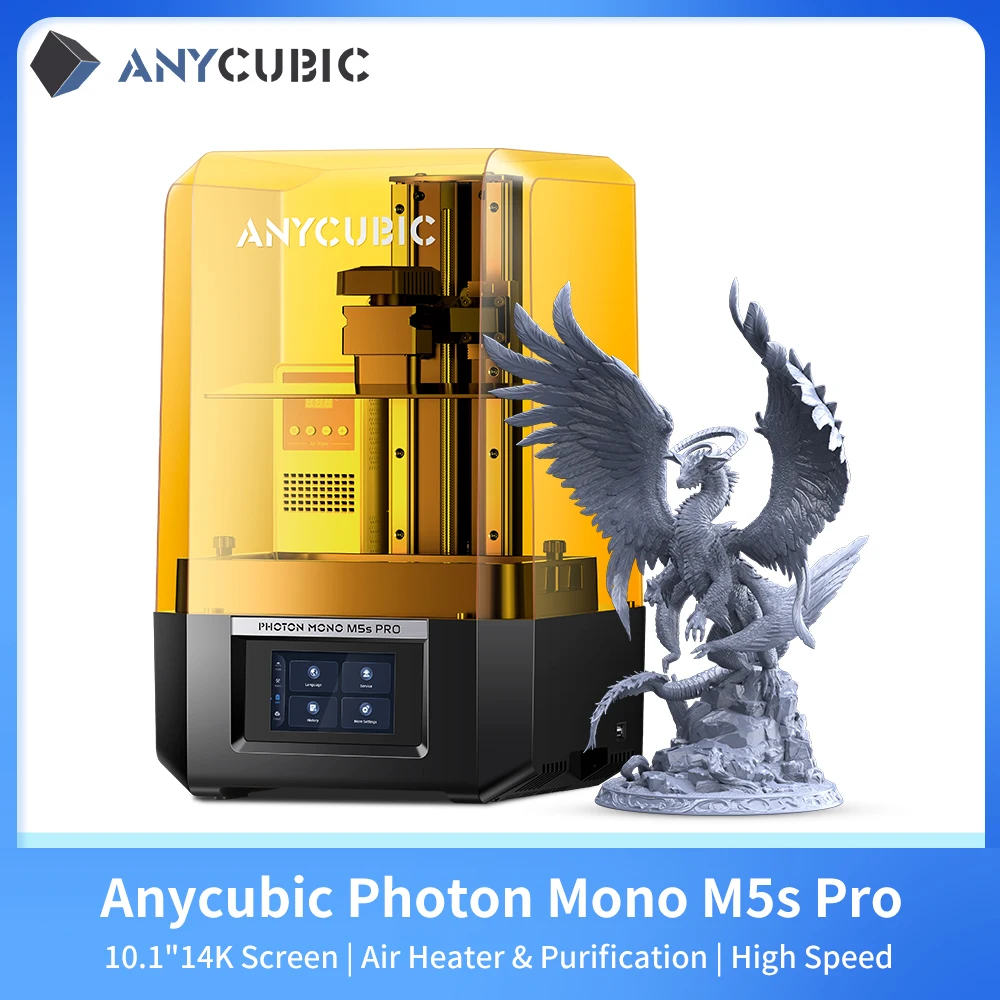

Anycubic Photon Mono M5s Pro: Anycubic Mono M5s Pro

Anycubic Photon Mono M7: 14K 3D Printer

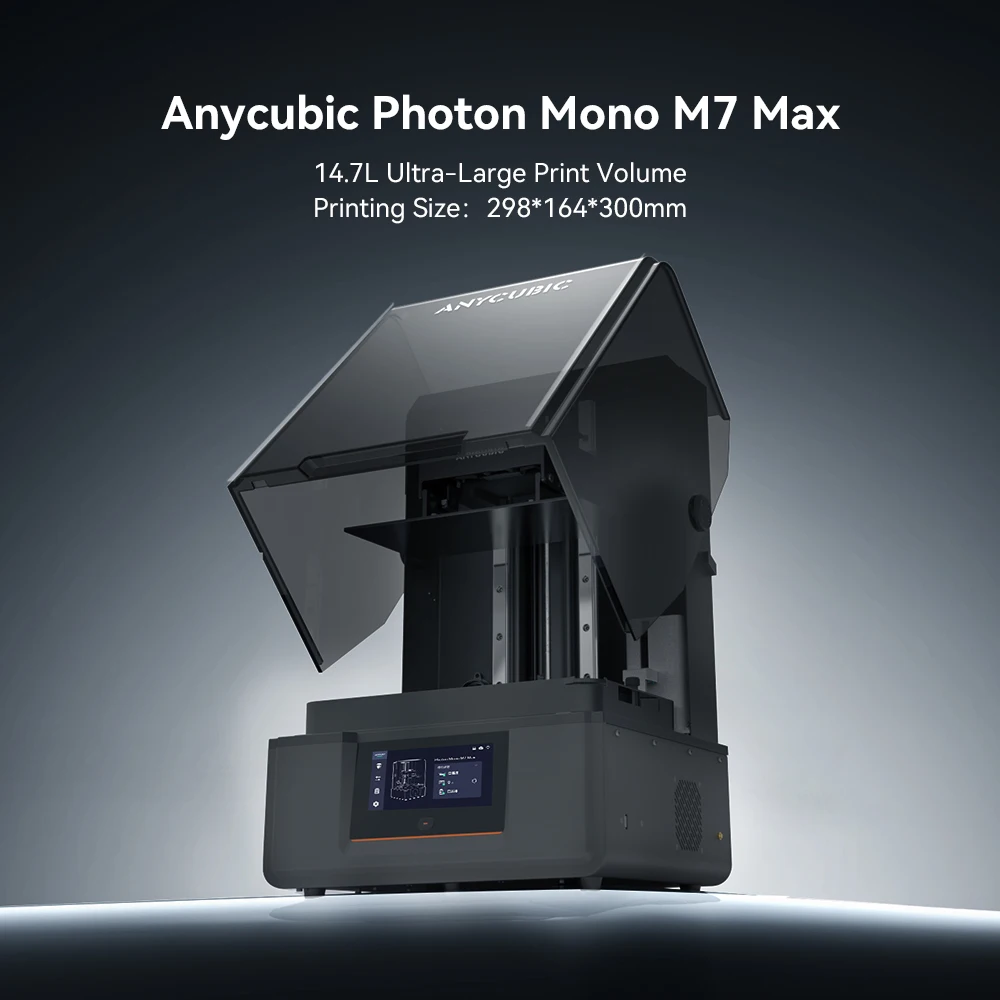

Anycubic Photon Mono M7 Max: 7K M7 Max

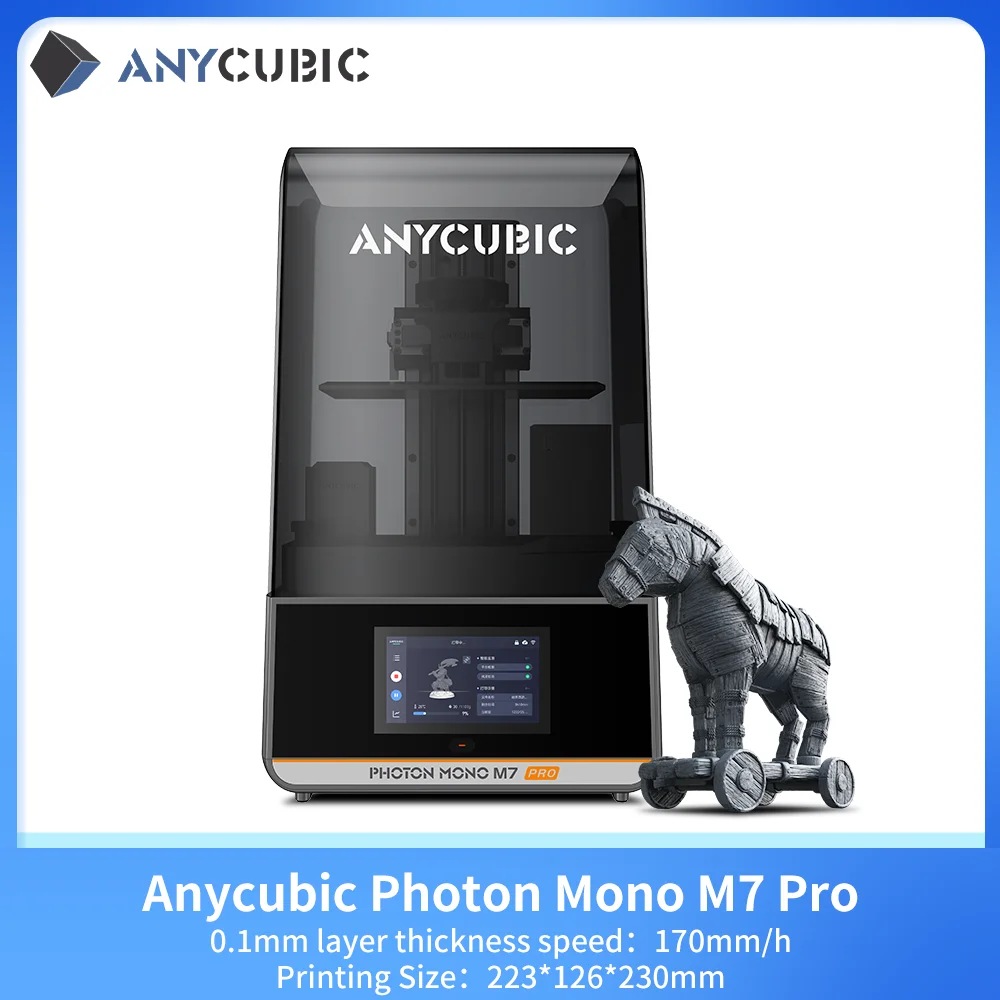

Anycubic Photon Mono M7 Pro: 14K LCD 3D Printer

Anycubic Wash and Cure 3: Wash and Cure 3

Anycubic Wash and Cure 3 Plus: Wash and Cure 3 Plus

Anycubic Wash and Cure Max: Wash and Cure Max

Brand Name: PHOTON

CE Certification: Yes

Certification: CE

DLP 3D Printer: Resin 3D Printer

Fliament: 405mm Resin

High-concerned chemical: None

Impresora 3d: 3D Printer

Interface Type: USB

IsWi-Fi/BluetoothSupport: No

Molding Technology: LCD

Photon Mono 4 Ultra: Photon Mono 4 Ultra

Photon P1: Anycubic Photon P1

SLA 3D Printer: LCD 3D Printer

Slice Software: PHOTON Workshop

Warranty: 1 Year Warranty

Wireless Connectivity: None

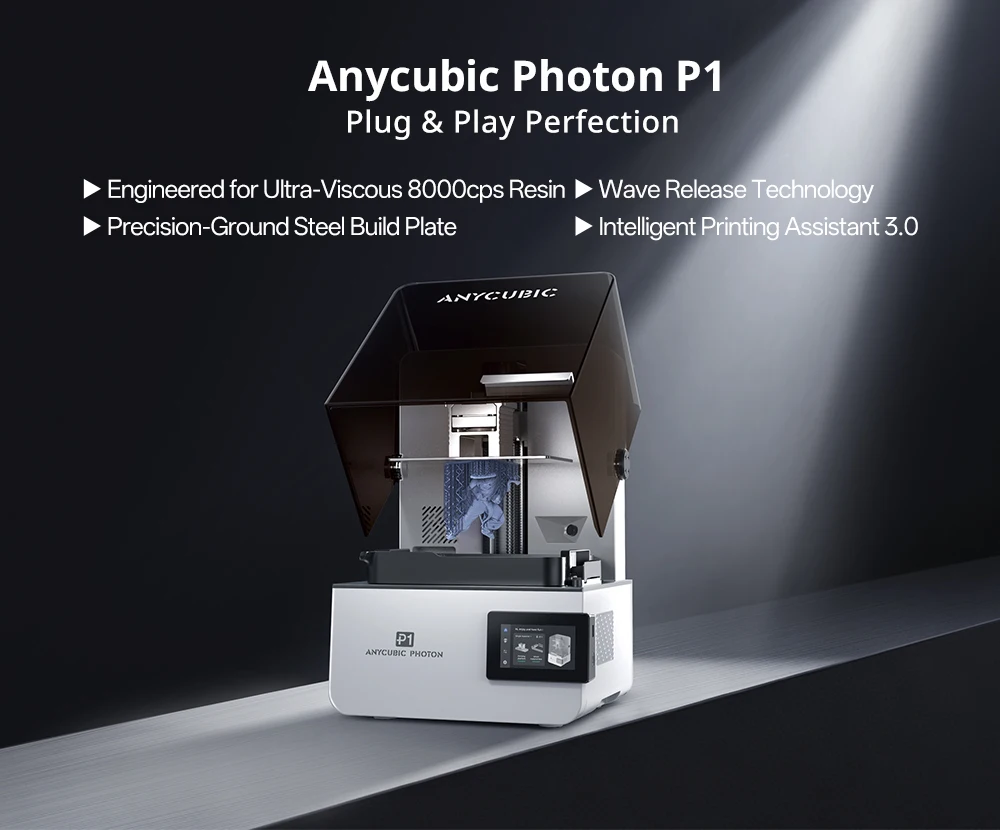

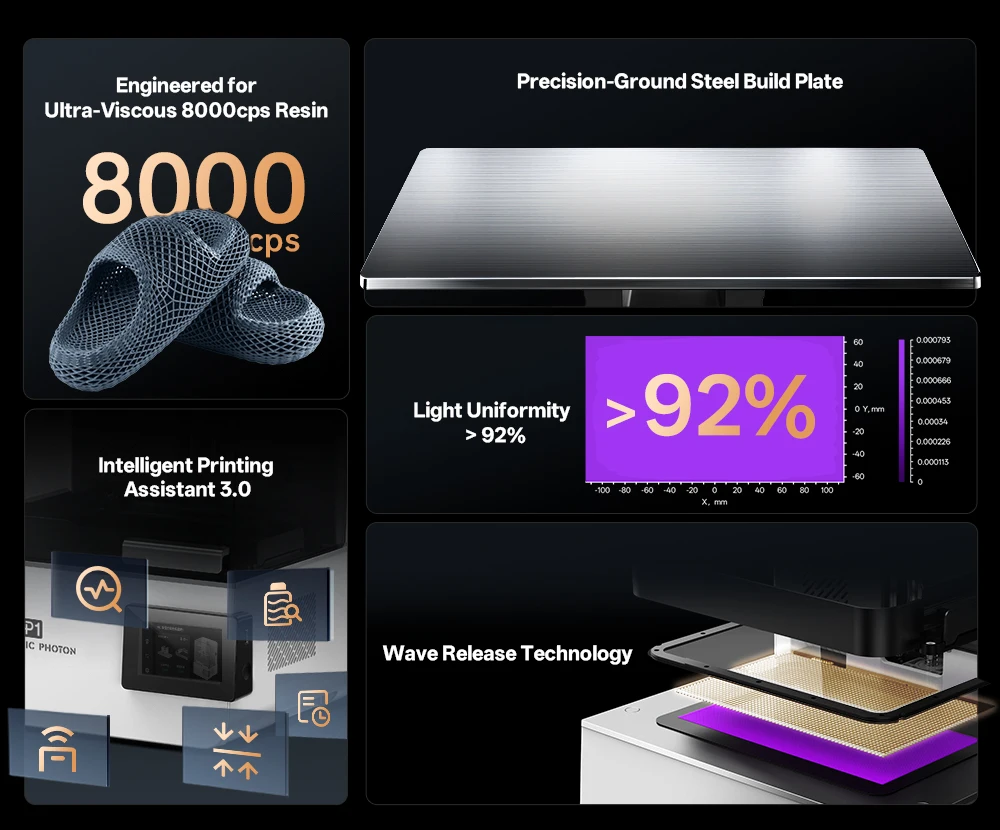

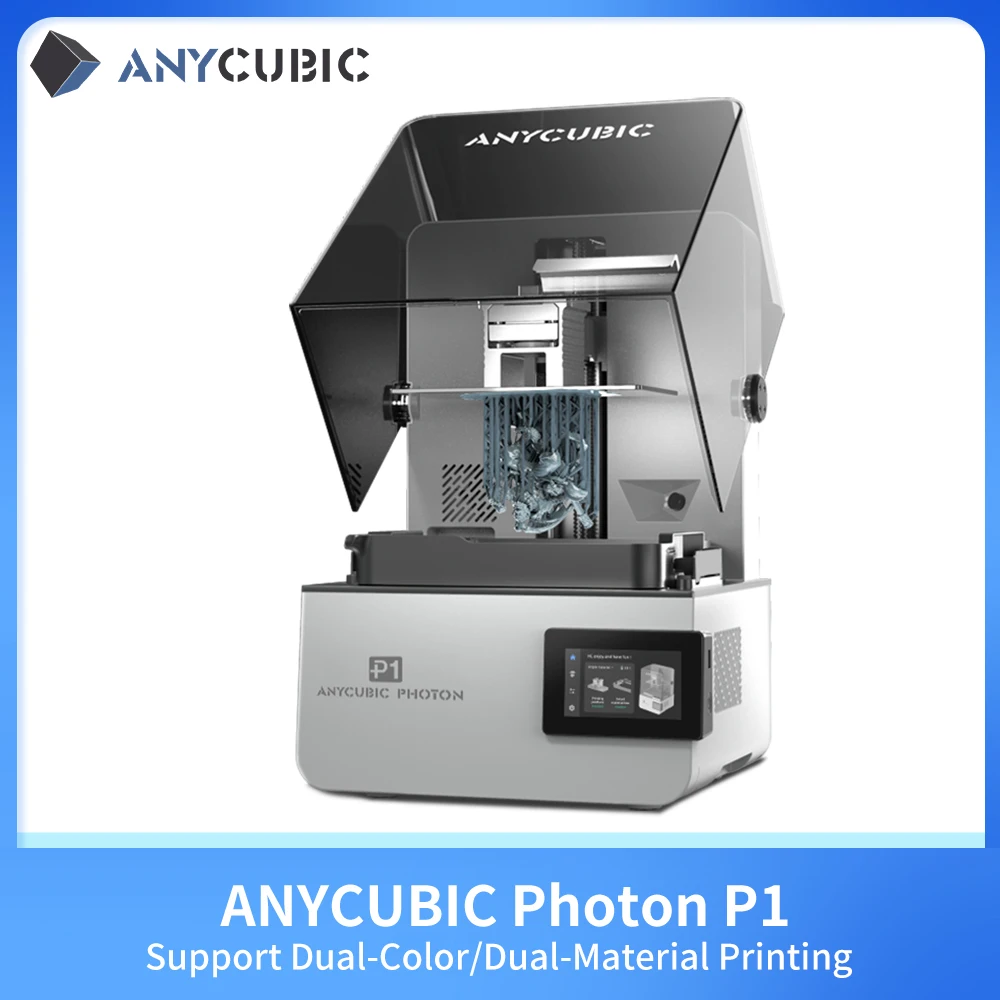

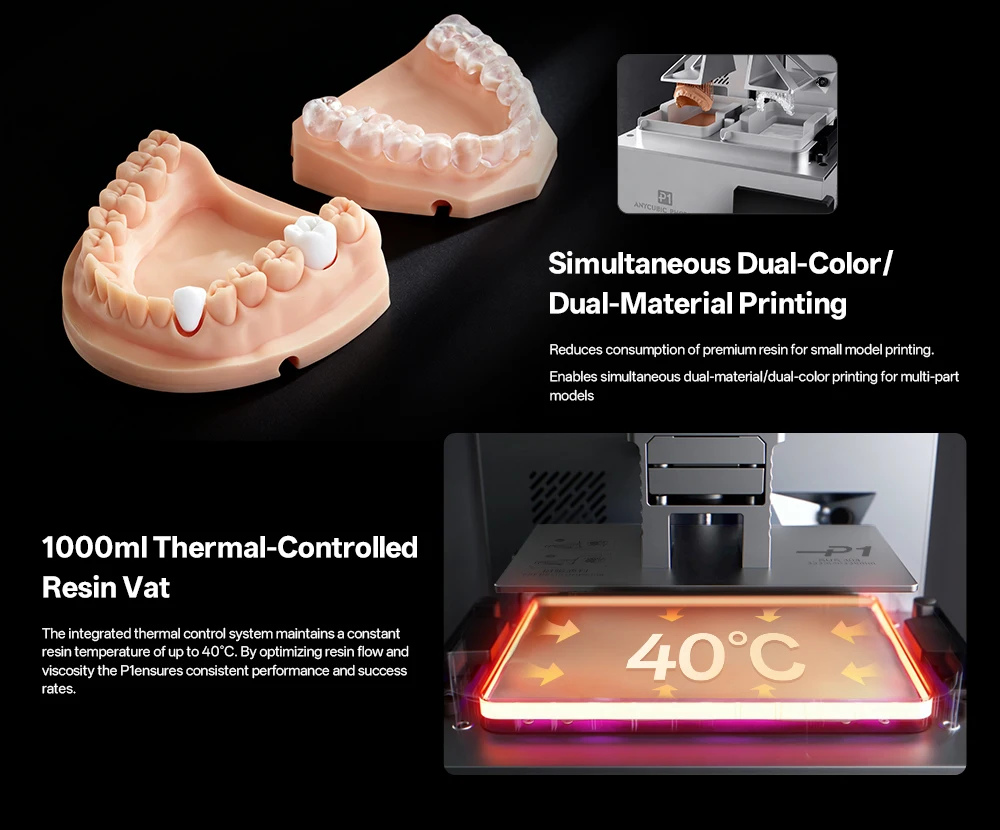

Photon P1

● Build Platform: Precision Steel Platform

● LCD Screen: 10.1" Monochrome LCD (14K)

● Control Panel: 4.5" Resistive Touchscreen

● File Transfer: USB 2.0/WiFi/LAN (2.4GHz)

● Printing Speed: 25-35mm/h (0.05mm layer, Std Resin)

● Leveling System:Auto-Leveling 3.0 with Feedback

● Z-Axis Mechanism:Dual Rail + Ball Screw

● Release Technology:Wave Release Technology

● Printing Dimensions: 223×126×230mm (6.5L)

● Machine Size: 366×338×539mm

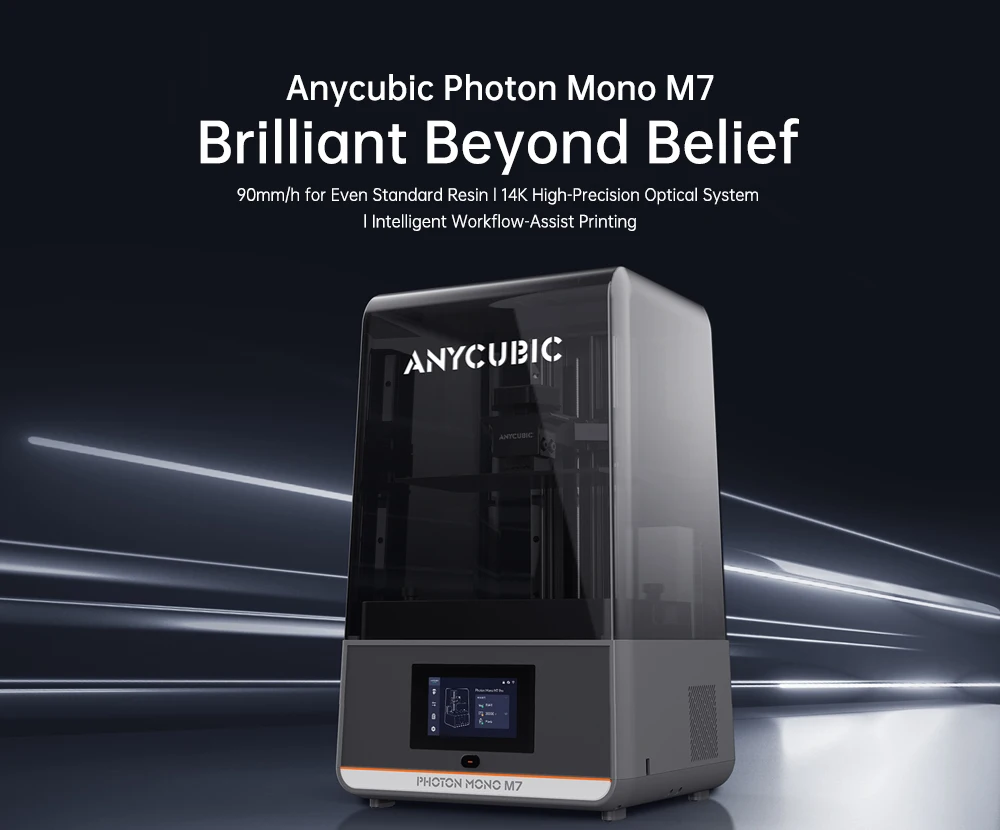

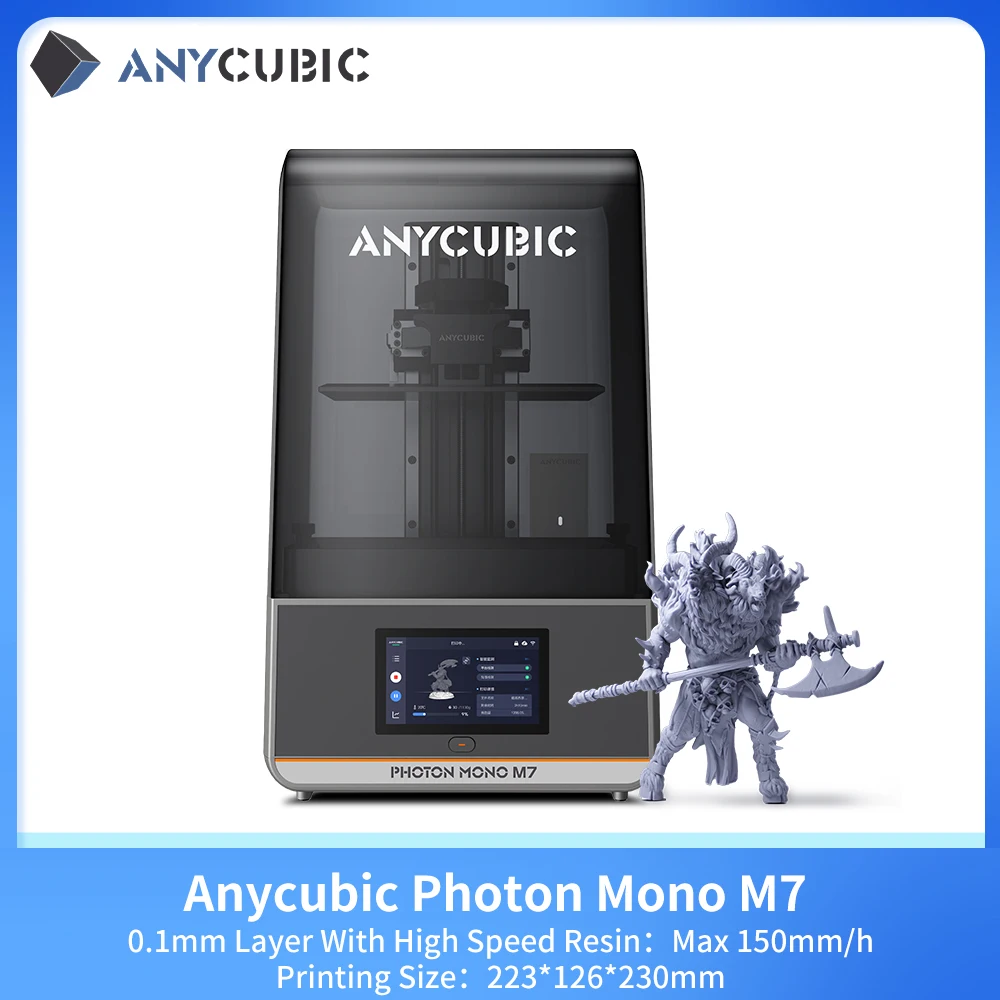

Photon Mono M7

● Build Platform: Laser printing platform

● Exposure Screen:

● Control Panel: 4.3-inch capacitive touch screen

● Data Input: USB-A 2.0/Wifi

● Machine Leveling: Free leveling

● Printing Speed: Standard resin 0.1mm layer thickness: Max.90mm/h; High speed resin 0.1mm layer thickness: Max.150mm/h

● Printing Dimensions: 223x126x230mm

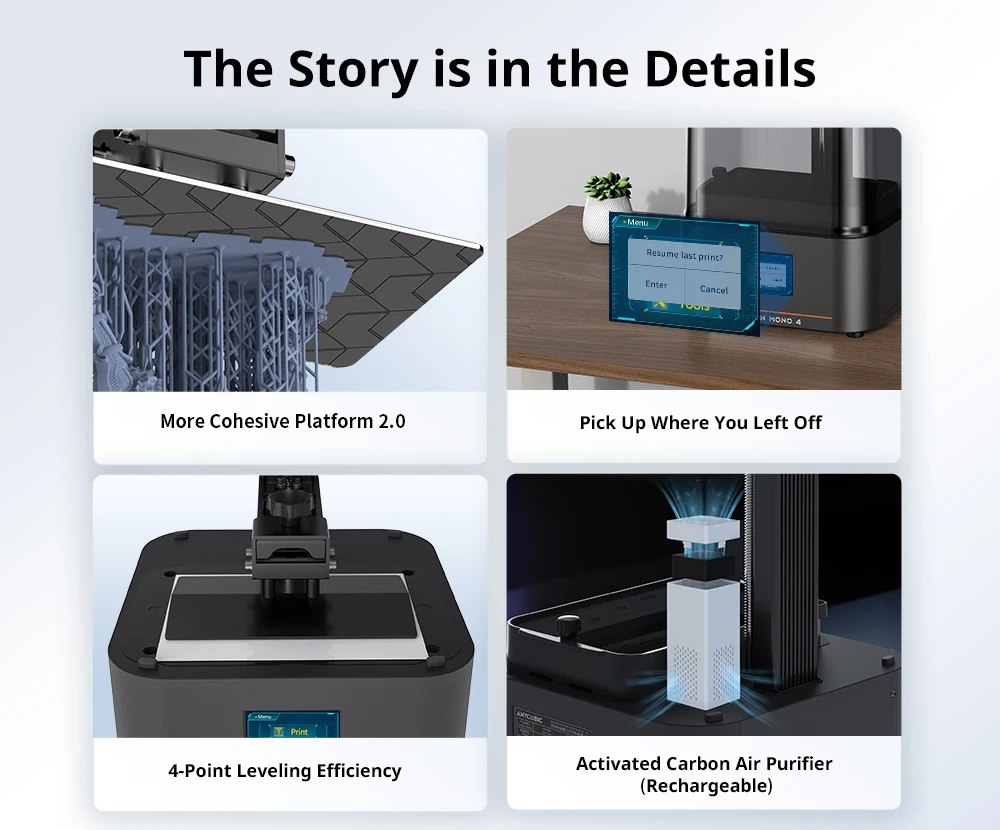

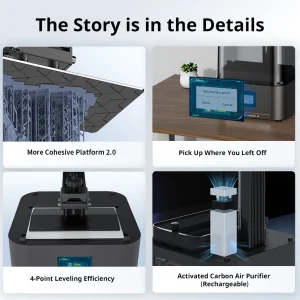

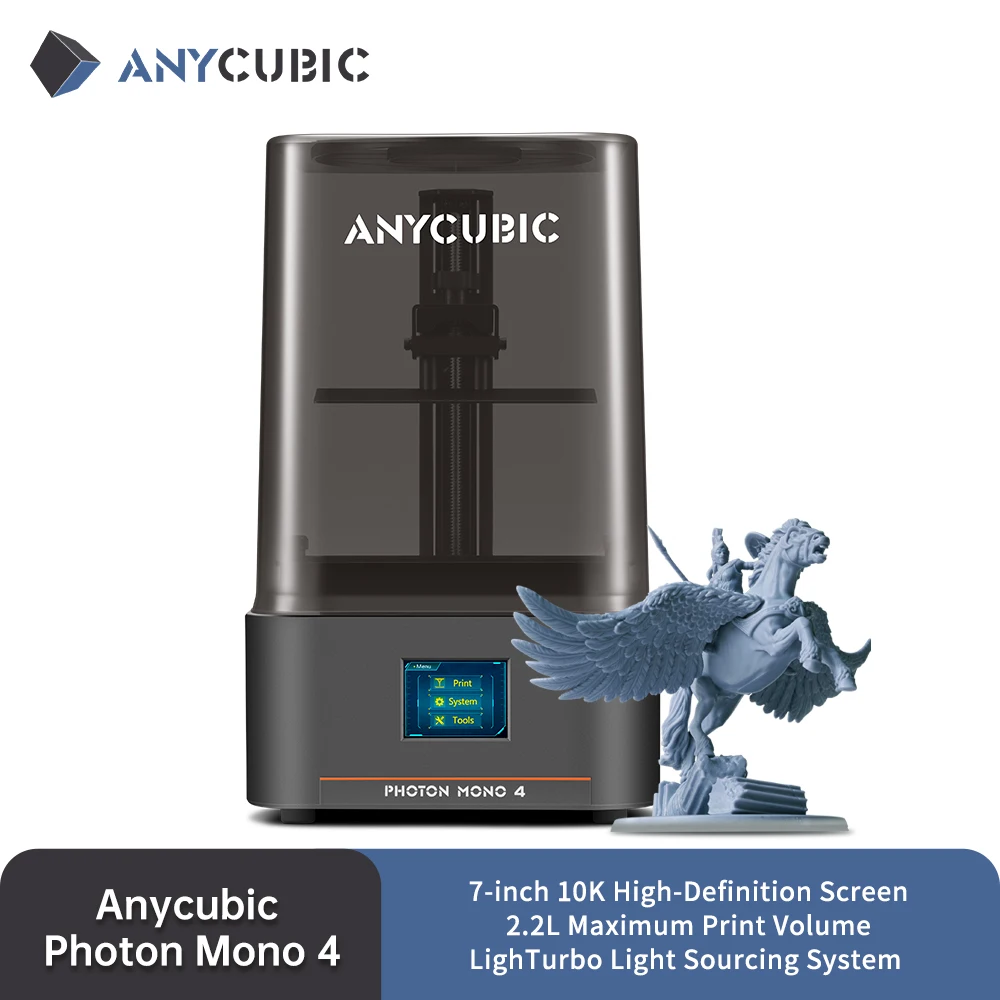

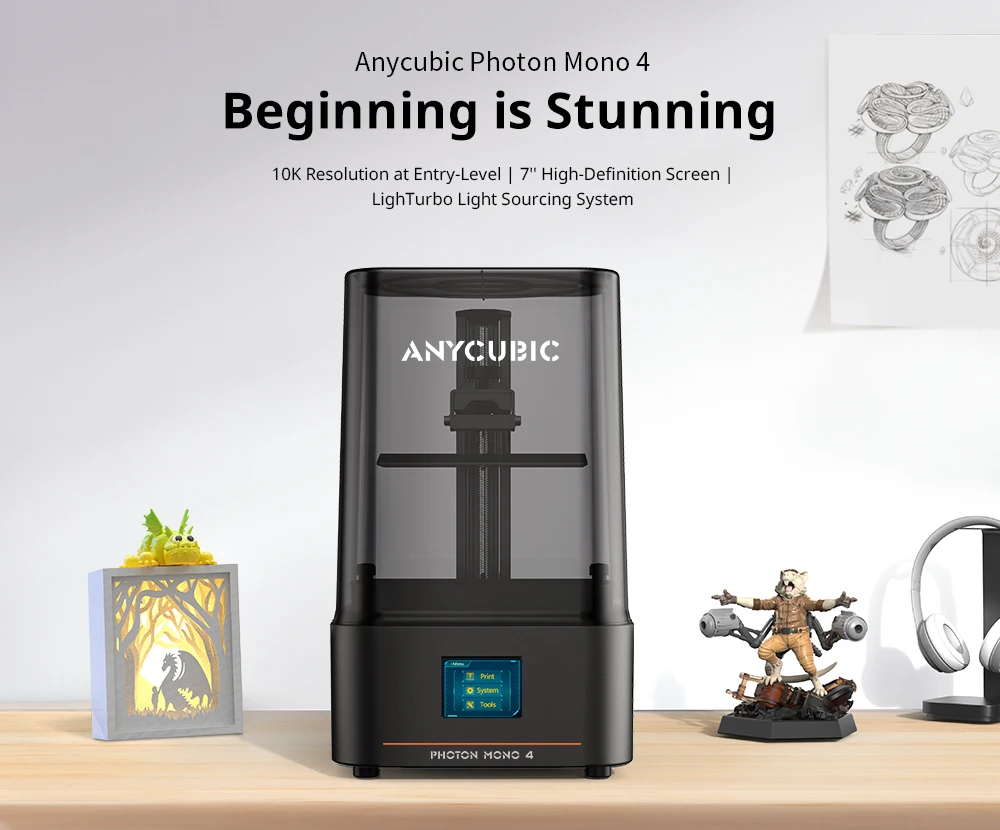

ANYCUBIC Photon Mono 4

Beginning is Stunning

7-inch 10K High-Definition Screen |2.2L Maximum Print Volume | LighTurbo Light Sourcing System

Exposure screen: 7" High-Definition Screen

Printing accuracy: 10K+9024 x 5120 px

Light source: Parallel matrix upgrade Light Source

Printing dimensions: 6.0 x 3.4 x 6.5 in.

Product Dimensions：9.1 x 9.3 x 15.4 in.

Printing speed: ≤2.76 in./hr.

Machine leveling: Manual (4-point)

Slicing software：Photon Workshop

File Transfer：USB

Maximum print volume：2.2L

Net Weight：4KG

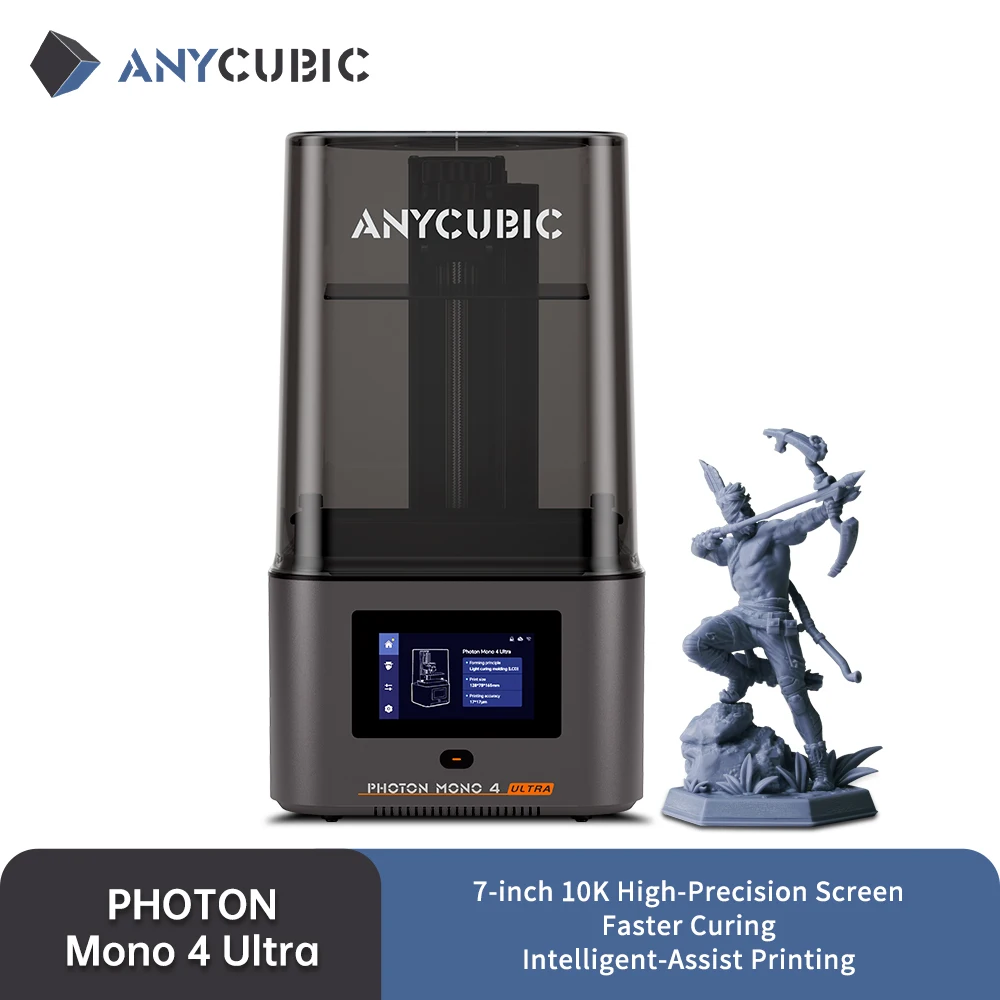

ANYCUBIC Photon Mono 4 Ultra

Outsmart, Outstart

10K High-Precision | Faster Curing | Intelligent-Assist Printing

●Z Axis：Single liner with 20μm accuracy

● Build Platform: Laser engraving aluminum alloy

● Exposure Screen: 7"  monochrome

●LCD Resolution：10K (9024*5120px)

● Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration

● Control Panel: 4.3" TFT touch-control

● Data Input: USB-A 2.0, WIFI

● Machine Leveling: 4-point manual leveling

● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)

● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)

● Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)

● Product Dimensions:236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)

● Machine Weight: 5KG/11lb.

●Maximum print volume：2.2L/74.4oz.

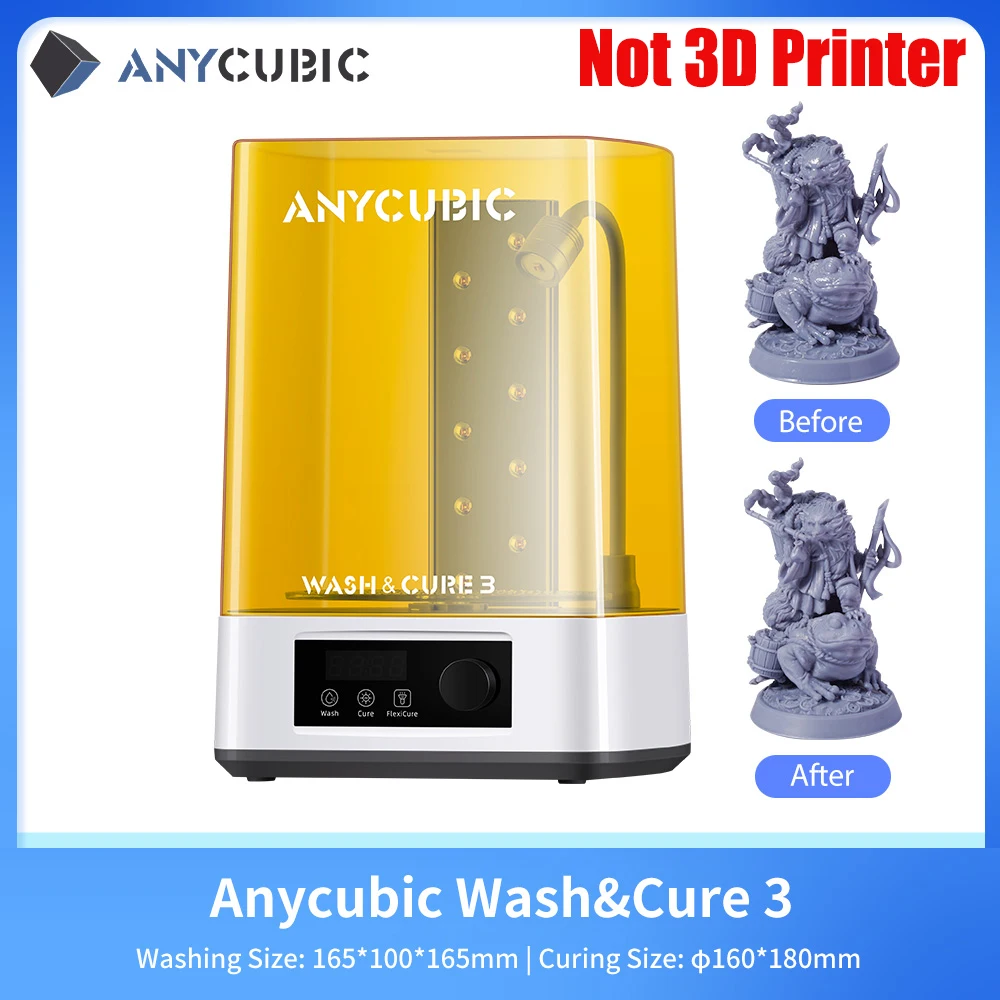

Wash and Cure 3

Cleaning Size(With platform): 165*100*165mm/ 6.5*3.9*6.5 inch

Maximum Cleaning Size(Without platform): 165*100*180mm/ 6.5*3.9*7.1 inch

Maximum Curing Size: φ160*180mm/ φ6.2*7.08 inch

Machine size: 216*217*310 mm/ 8.5*8.5*12.2 Inches (L*W*H)

Machine Weight: 2.7 kg/ 5.9 lbs

Suitable Model: Photon Mono 2/ Photon D2

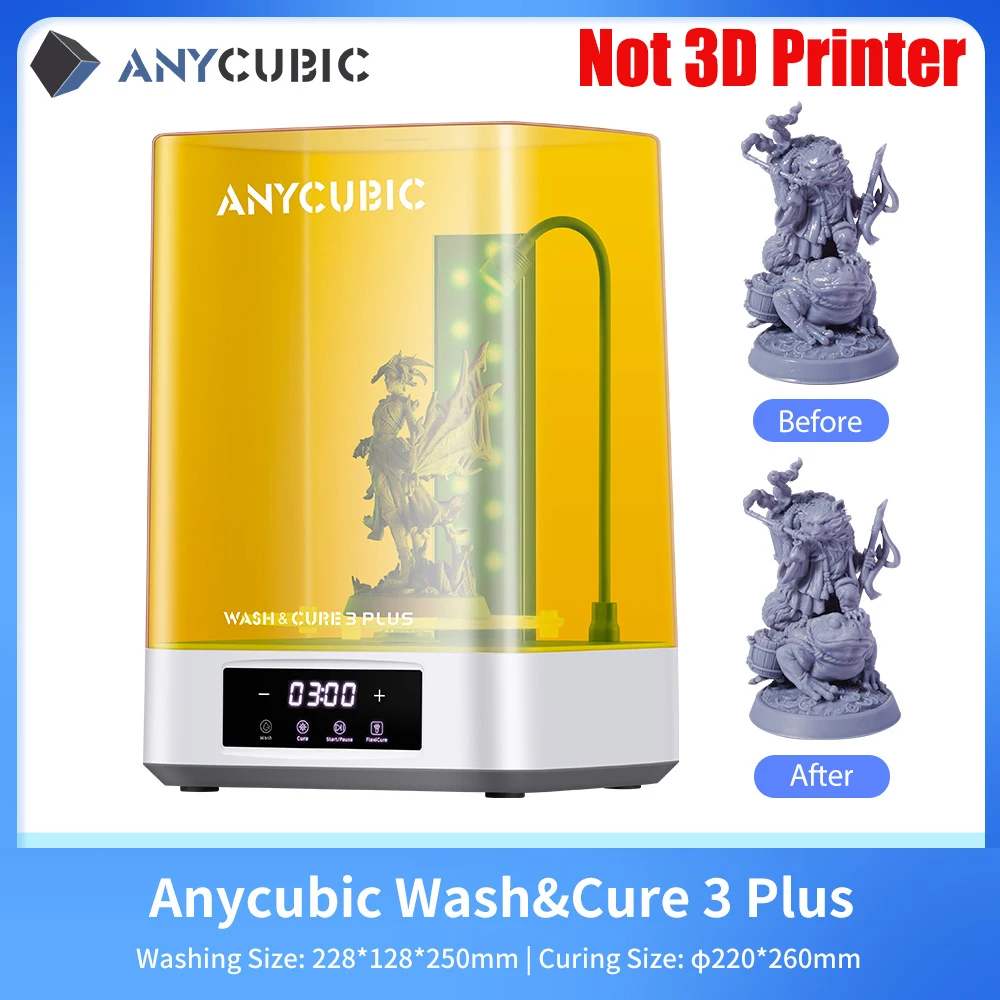

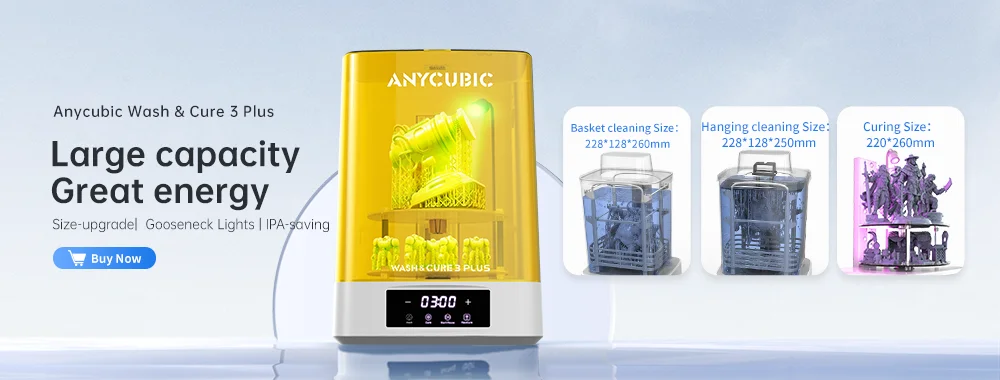

Wash and Cure 3 Plus

Cleaning Size(With platform): 228*128*250 mm/ 6.5*5.0*9.8 inches

Maximum Cleaning Size(Without platform): 228*128*260 mm/ 6.5*5.0*10.2 inches

Maximum Curing Size: φ220*260mm/ φ8.7*10.2 inch

Machine size: 312*267*434mm/ 12.3*13.8*17.1 inches (L*W*H)

Machine Weight: 5.7 Kg/ 12.6 lbs

Suitable Model: Photon Mono X2/ X 6Ks/ M5/ M5s

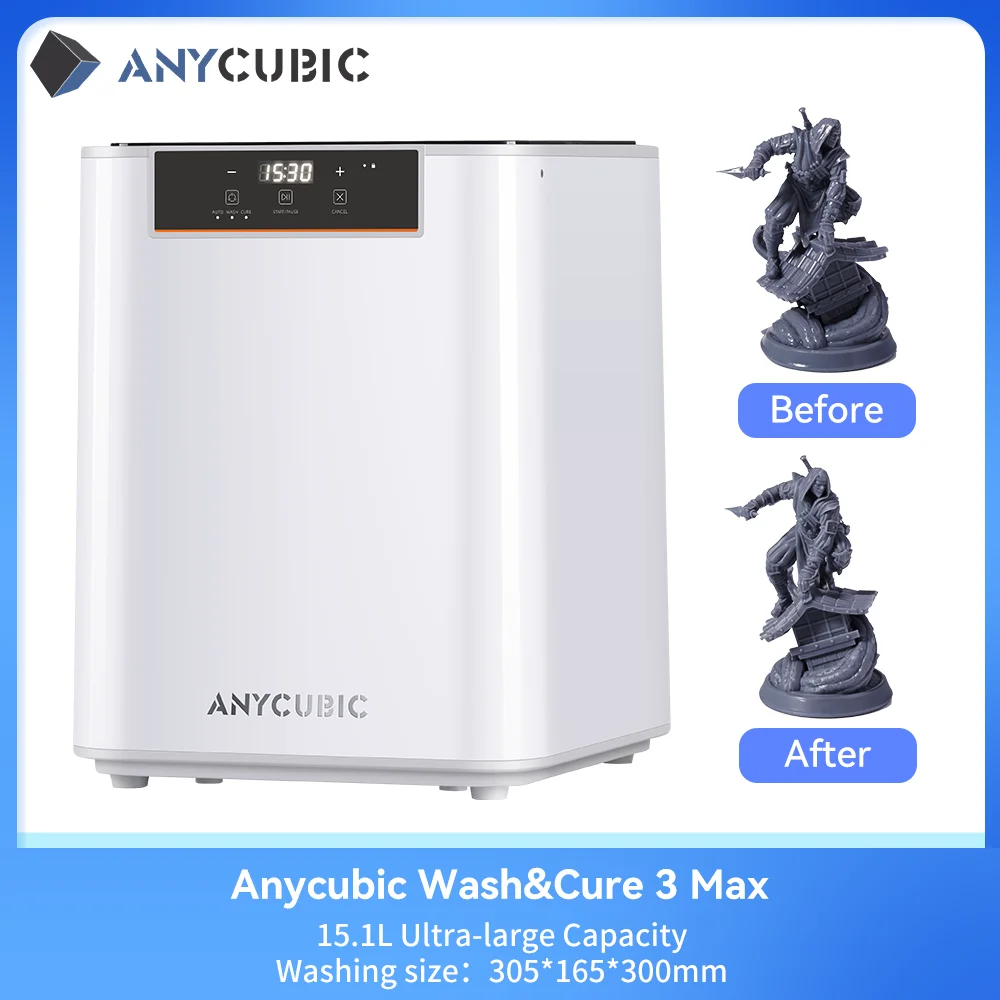

Wash and Cure Max

Washing and Curing Size: 300*165*300mm/ 11.8*6.5*11.8 inches (LWH)

Machine size: 434*434*556mm/ 17.1*17.1*21.9 inches (LWH)

Machine Weight: 13.5 kg / 29 lbs

Suitable Model: Photon M3 Max
